Cờ lê bánh cóc / Cờ lê bánh cóc 1/4"

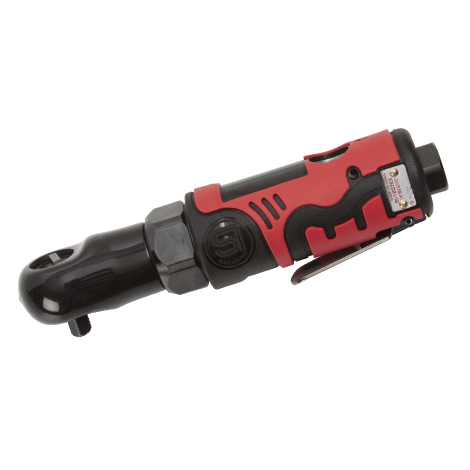

SI-1217EX
Thông số kỹ thuật
Shank Sizein./(mm) |
1/4/(6.35) |
|---|---|
Maximum TorqueNm/(ft-lb) |
43/(31) |
Working TorqueRange Nm/(ft-lb) |
0-36/(0-26) |
Bolt Capmm/(in.) |
6.35/(1/4) |
Free Speedr.p.m. |
300 |
Weightkg/(lb) |
0.54/(1.18) |
Noise Level *dBA/(power) |
84/(95) |
Vibration a/k *m/s2 |
4.0/0.9 |
Avg.Air ConsumptionCFM/(L/S) |
1.6/(0.8) |
Air Inlet Sizein. |
1/4 |
Mô tả
? Same body size as SI-1200B.
? Double mold composite body cover for added vibration and cold temperature protection.
? 360 air inlet swivel.
? Double Thrust Mechanism
Two thrust springs and two thrust washers disperse pressurizing force
and increase the lifetime of the ratchet mechanism 30% than before.
*Noise levels according to ISO 15744:2008,ISO 11203:2009
*Vibration level according to ISO 28927
